· Rubber stair tread with protruding circular disks creates ultimate traction on steps.
· Manufactured with optional riser to create flowing look to the step.
· Soft self-waxing surface helps reduce area noise from shoe traffic.
· Perfect for use in office buildings, hospitals, schools, department stores, shopping malls, etc.
· Easily clean surface with broom or damp mop.

SPECIFICATIONS
Thickness: 1/8"
Depth: 18-3/4" with riser, 12-3/4" tread only.
Widths: 36", 48", 72"
Weight: 2.8 lbs./lin. ft. (with riser); 2.2 lbs./lin. ft. (tread only)
Colors: (101)Silver Wing, (103)Creme Caramel, (104)Old Gold, (111)Willow Mint, (112)Aurora Blue, (120)Onix Black, (123)Midnight Charcoal, (133)Polished Pewter, (134)Platinum Gray (136)Versailles Taupe, (137)Carriage Gray, (140)Sandstone Beige, (148)Deep Chestnut, (152)Cherry Red, (189)Emerald Luster, (191)Indigo Sapphire.
Fire Rating: Class 1

INSTALLATION: Install with Armor Contact Adhesive (AD-1303)

· Heavy-duty, armor molded rubber treads with diamond grooves combining beauty and long-life.
· Deep grooves allow dirt particles to fall beneath the tread, which increases traction and minimizes wear.
· Perfect for use in office buildings, hospitals, schools, department stores, shopping malls, etc.
· Easily clean surface with broom or damp mop.
· Matching Cove Risers (AT-707): 7" Cove Risers available 1/8" thick.

SPECIFICATIONS (C.S.I. Div. 9 Stair Treads)
Thickness: 1/4" overall.
Size: 13-1/4" deep.
Lengths: 36", 42", 48", 54", 60", 72"
Federal Spec: ZZ-T-001237-GSA-FSS and RR-T-650 Type A Type II
Marbleized or Plain Colors: (05)Stone, (06)Diablo Red, (09)Clay, (15)Cabernet, (20)Charcoal, (28)Medium Gray, (33)Adobe Peach, (40)Black, (42)Sable, (45)Sandalwood, (47)Brown, (48)Gray, (49)Beige, (58)Windsor Blue, (59)Heather Green, (60)Taupe, (74)Iris, (75)Lemon, (80)Fawn, (92)Blue Lagoon. Other colors available.

INSTALLATION : Cut to fit each step accurately and install with Armor Contact Adhesive.

· Smooth, comfortable, rubber treads with abrasive safety strips provide improved traction.
· Available in ¾” and 2" wide abrasive strips.
· Smooth surface makes these treads easy to clean.
· Perfect for use in office buildings, hospitals, schools, department stores, shopping malls, etc.
· Easily clean surface with broom or damp mop.

SPECIFICATIONS (C.S.I. Div. 9 Stair Treads)
Depth: 12-1/2" (nose to back edge)
Thickness: 3/16" at nose for square nose (RC-722) and curve nose (RC-723)
Thickness: 5/16" at nose for long square nose (RC-727) and
Heavy Nose (RC-732)
Lengths: 36", 42", 48", 54", 60", 72"
Marbleized Colors: (11)Gray, (20)Red, (27)Walnut, (30)Mahogany, (40)Black, (43)Dark Teal, (46)Medium Gray, (47)Oak, (53)Green, (58)Oatmeal, (66)Slate, (70)Blue, (77)Birch, (80)Plain Black, (85)Beige, (89)Maroon, (99)Peach (see colors chart below).
Solid Colors: (107)Dark Brown, (108)Black, (111)Light Gray, (127)Medium Brown, (142)Dark Blue, (146)Medium Gray, (165)Burgundy, (166)Slate, (177)Beige, (183)Dark Green.
Fire Spread Rate: 75 or less by ASTM-E84 Test.
Federal Spec: ZZ-T-001237-GSA-FSS & RRT-650E

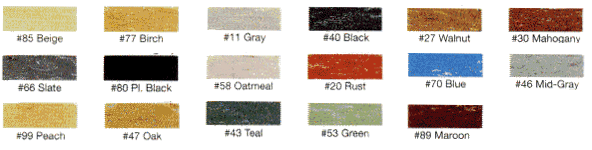

Stair Tread Colors

· Manufactured of high quality, heavy-duty extruded aluminum.
· Exclusive safety traction surface made of abrasive non-slip particles.
· Holes drilled and countersunk.
· Typical applications include schools, public buildings, hospitals and industry.

SPECIFICATIONS
Thickness: 1/4"
Coefficient of friction: (ASTM F609-79) 1.02 dry, 0.98 wet.
Base: Aluminum alloy 6063-T5, minimum thickness 0.125"
Safe-Tred® designs for renovation treads shown are 9/32" thick.
Lip 1/18" from underside.

· Vinyl treads with raised horizontal ribs provide excellent traction and stylish appearance.
· Raised treads allow dirt and moisture to fall between while maintaining traction.
· Typical installations include office buildings, apartment buildings, motels and churches.
· Easy to keep clean with broom or damp mop.
· Made for medium commercial use.

SPECIFICATIONS (C.S.I. Div. 9)
Thickness: 3/16" at nose, tapering to 1/8"
Depth: 12"
Weight: 1.25 lbs./ lin. ft.
Lengths: 36", 42", 48", 54", 60", 72", 84", 96"
Colors: Black, Brown, Gray, Sand.
Federal Spec: ZZ-T-001237-GSA-FSS
Flame Spread Rate: 75 or less (ASTM-E-84)
